Marshall DSL-1HR 1W Tube Amplifier Head Overview :

The DSL1H has the classic Marshall tone and features expected on a DSL but at a lower power to suit those who play at home. The sound has been perfectly crafted to suit those with eclectic tastes, looking for tonal experimentation.

Play At Home
There is the ability to reduce from 1w to 0.1w and use the emulated output for recording or headphones, we have specifically engineered the DSL1 for a great sound at low levels.

Choose Your Tone
Using the two footswitchable gain channels you can go from clean, classic tones to those with added distortion and extra bite.

Select Your Sound
Create the music you want using the studio quality reverb, tone shift and FX loop.

General

• Model : DSL1HR
• Range : DSL
• Technology : Valve
• Channels : 2, ultra gain and classic gain

Electronics

• Output wattage : 1W with optional power reduction to 0.1W

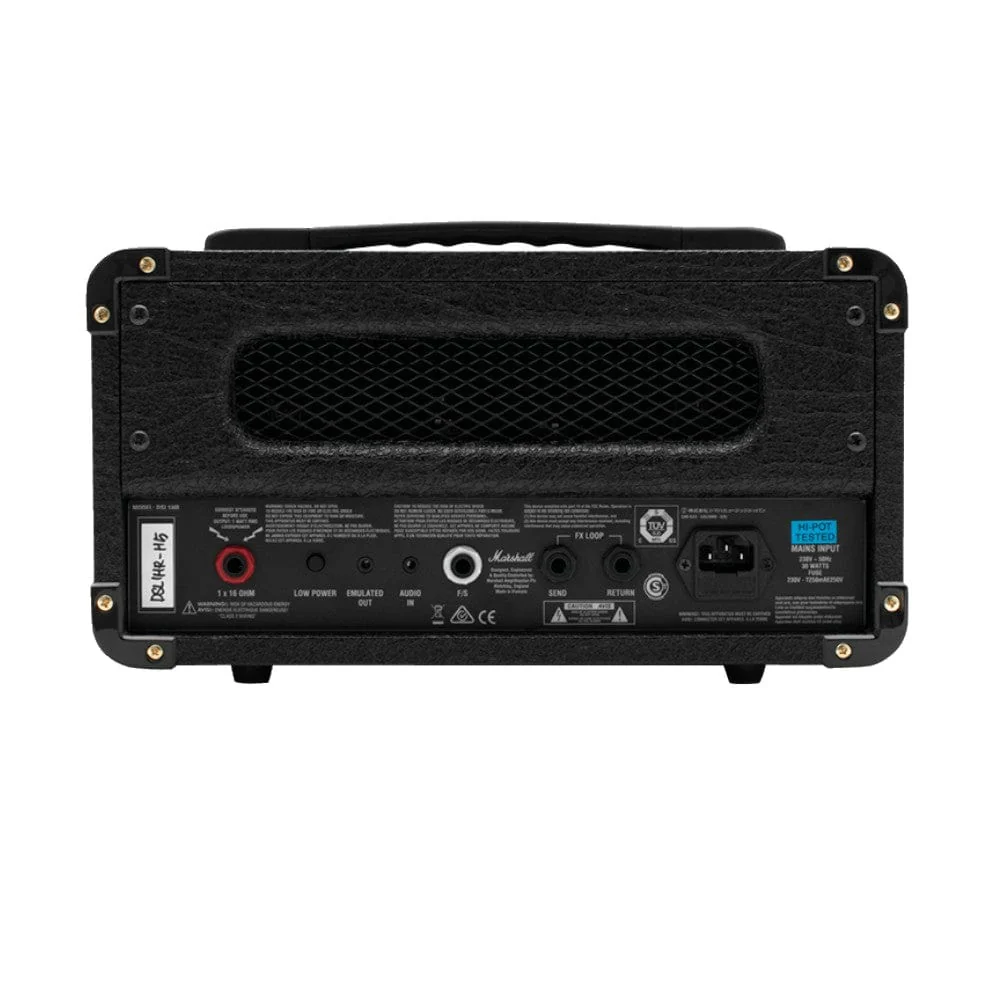

• Outputs : 1 x 1/4" jack speaker output, 16Ω load only, 1 x 3.5mm jack emulated line out
• Input : 1 x 1/4" instrument jack, 1 x 3.5mm jack aux in, footswitch
• Controls : Classic gain channel with volume, ultra gain channel with gain and volume control, channel select switch, tone shift switch, treble, middle, bass, reverb and power reduction option
• Effects : Digital reverb
• Effects loop :Yes, series, send/return

Valves

• Preamp valves : 2 x ECC83
• Power amp valves : 1 x ECC82
• Accessories
• Footswitch : PEDL-90011
• Cable : Detachable power cable included

Dimensions

• Weight : 5.6 kg / 12 lbs
• Width : 360 mm / 14.2"
• Height : 210 mm / 8.3"
• Depth : 215 mm / 8.5"

Made in Vietnam
