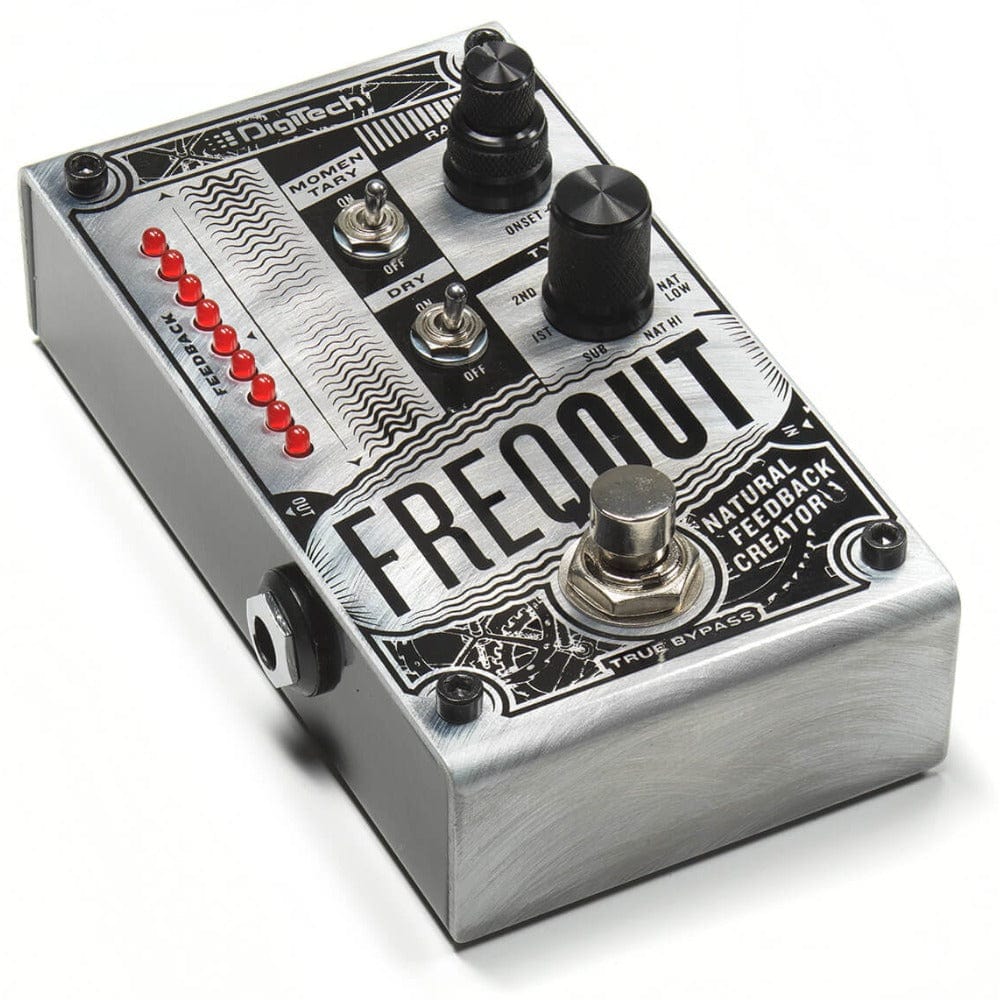

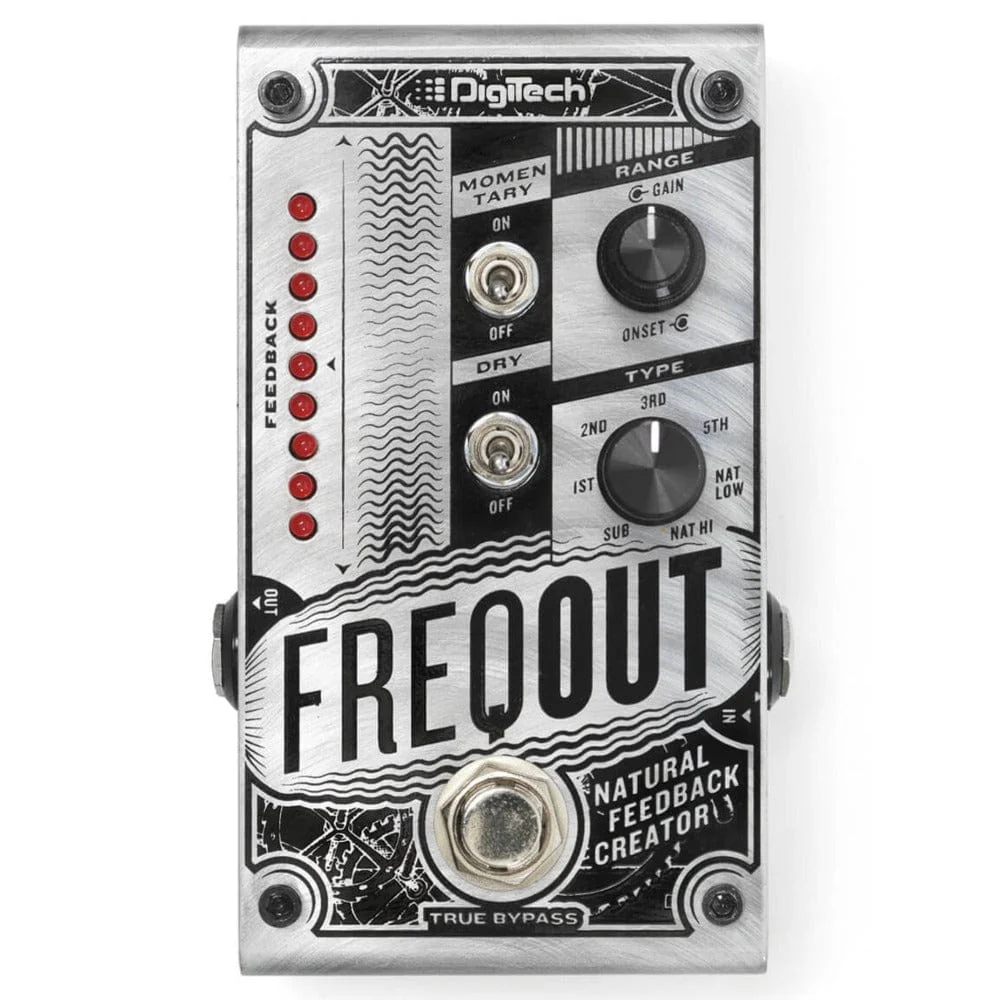

Digitech Freqout Natural Feedback Creator Effect Pedal Overview:

The DigiTech FreqOut Natural Feedback Creator allows you to get sweet, natural feedback at any volume, with or without distortion. The FreqOut is perfect for situations where volume must be controlled like in the studio, with in ear monitors, or low-volume performance and practice. However, the FreqOut can also be used at gig volume to focus out-of-control feedback on a preferred harmonic at any stage position. The FreqOut uses a 9VDC power supply to easily integrate into your existing pedalboard.

Specifications:

• CONTROLS: Feedback, Momentary On/Off, Dry On/Off, Gain, Onset, Type, Effect On/Off
• SIGNAL TO NOISE RATIO: > -106dB (A weighted); ref = max level, 22 kHz bandwidth
• THD: 0.004% @ 1 kHz; ref = 1 dBu w/ unity gain
• A/D/A CONVERSION: 24-bit
• POWER CONSUMPTION: 2.1 Watts (235 mA typical @ 9 VDC)
• POWER REQUIREMENTS: 9 VDC External Adapter (sold separately)
• POWER ADAPTER (SOLD SEPARATELY): PS0913DC-04 (US, JA, EU, AU, UK)
• POWER ADAPTER OUTPUT: 9 VDC 1.3 A

Dimensions

1. LENGTH: 4.75" (120mm)
2. HEIGHT: 1.75" (44mm)
3. WIDTH: 2.875" (73mm)
4. WEIGHT: 0.8 lb. (363g)

Audio Output

• OUTPUT TYPE: 1/4” Unbalanced TS (Tip-Sleeve)
• MAX OUTPUT LEVEL: +10 dBu
• OUTPUT IMPEDANCE: 1 kΩ (Effect enabled or effect bypassed w/ Momentary switch on) ; True Bypass (Effect bypassed w/ Momentary switch off)

Audio Input

• INPUT TYPE: 1/4” Unbalanced TS (Tip-Sleeve)
• MAX INPUT LEVEL: +5 dBu
• INPUT IMPEDANCE: 1 MΩ (Effect enabled or effect bypassed w/ Momentary switch on) ; True Bypass (Effect bypassed w/ Momentary switch off)
